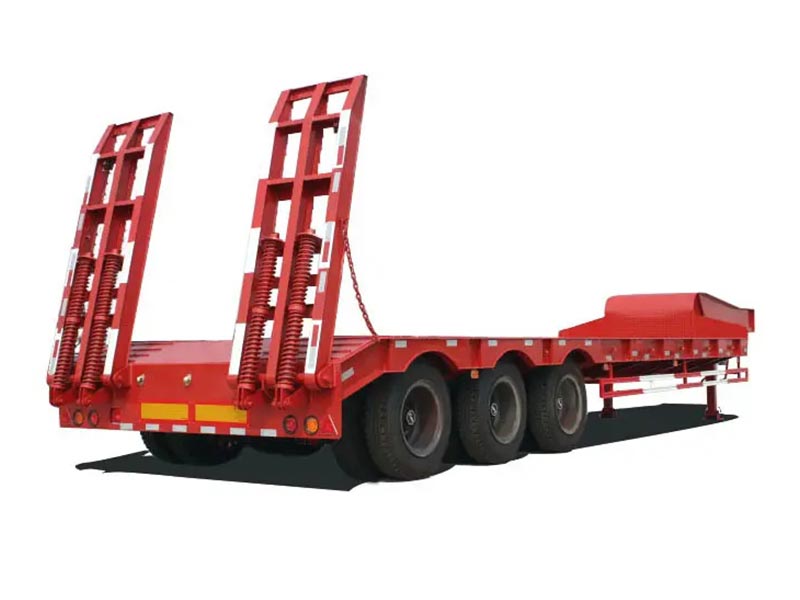

Lowbed Semi Trailers & Dump Trailers for Sale | Kaichen Machinery – Excavators & Dump Trucks

PRODUCT PARAMETERS

Axle:3* 13 tons capacity, FUWA brand
Landing legs:28T, single action, outside have reduction box.
Tire specs:8.25R20, 13pcs
Number of wheel:13 pieces
Leaf Spring:6 pairs, 10pcs (16mm thickness)

REQUEST A QUOTE

Description

FAQs

Request A Quote

Product Description

Dimensions:
Outside dimension
16800*2800*1700 mm (climbing ladder height excluded)
(The final dimensions depend on the final design drawings)
Frame:
Design/welding technology
Heavy duty and extra durability designed;

Main beam
520mm height main beams
Top Flange thickness 20mm,
Bottom Flange thickness 20mm,
Middle Flange thickness 12mm;
Flatbed
Bottom is 4mm pattern steel plate, side beam 25# channel steel.
OEM parts:
Axle
3* 13 tons capacity, FUWA brand
King Pin
90# king pin, exchange type
Suspension
Mechanical steel suspension
Leaf Spring
6 pairs, 10pcs (16mm thickness)
Landing legs
28T, single action, outside have reduction box.
Tire specs
8.25R20, 13pcs
Rim
6.5-20, 13pcs
Number of wheel
13 pieces
Brake system
Four double brake chamber, two single chamber
Electrical:
LED light
Others:

1pc Tool box, inside the goose neck, 2 pcs spare tyres, 1 pair heavy duty climbing ladder. Same width for front and rear loading
platform.

FAQs

How long will I receive the truck after payment? And what is your payment term?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

Why is your price a little higher than other Chinese brand trucks?

Our machinery adopt durable top brand engine, high configuration, with top quality, thus the cost will be a little higher.

What warranty do you provide for your Dongfeng truck?

We provide 12 months warranty calculating from the machinery equipment arrive at destination port. During the warranty time, we will provide free spare parts if you need to change the damaged parts at first time when you contact with us. And provide you the cost price of spare parts after the warranty time.
