PRODUCT PARAMETERS
Product Description

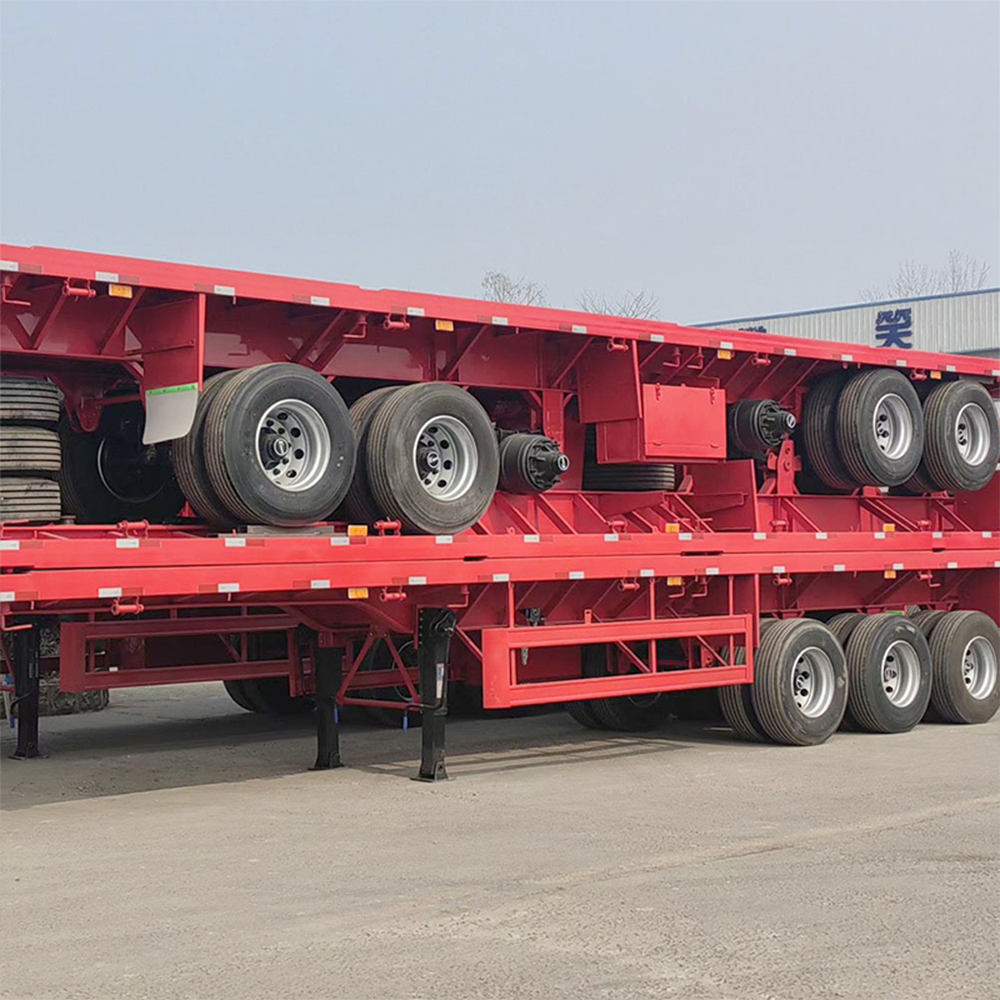

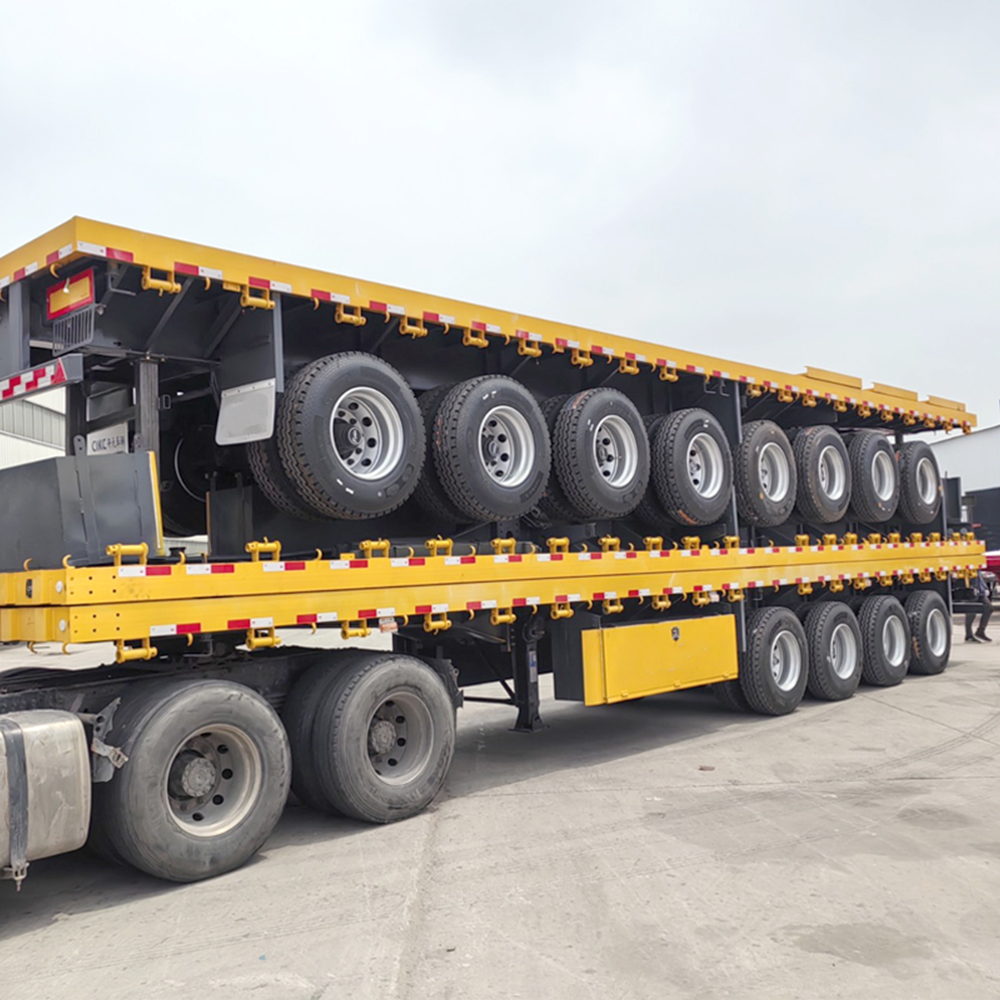

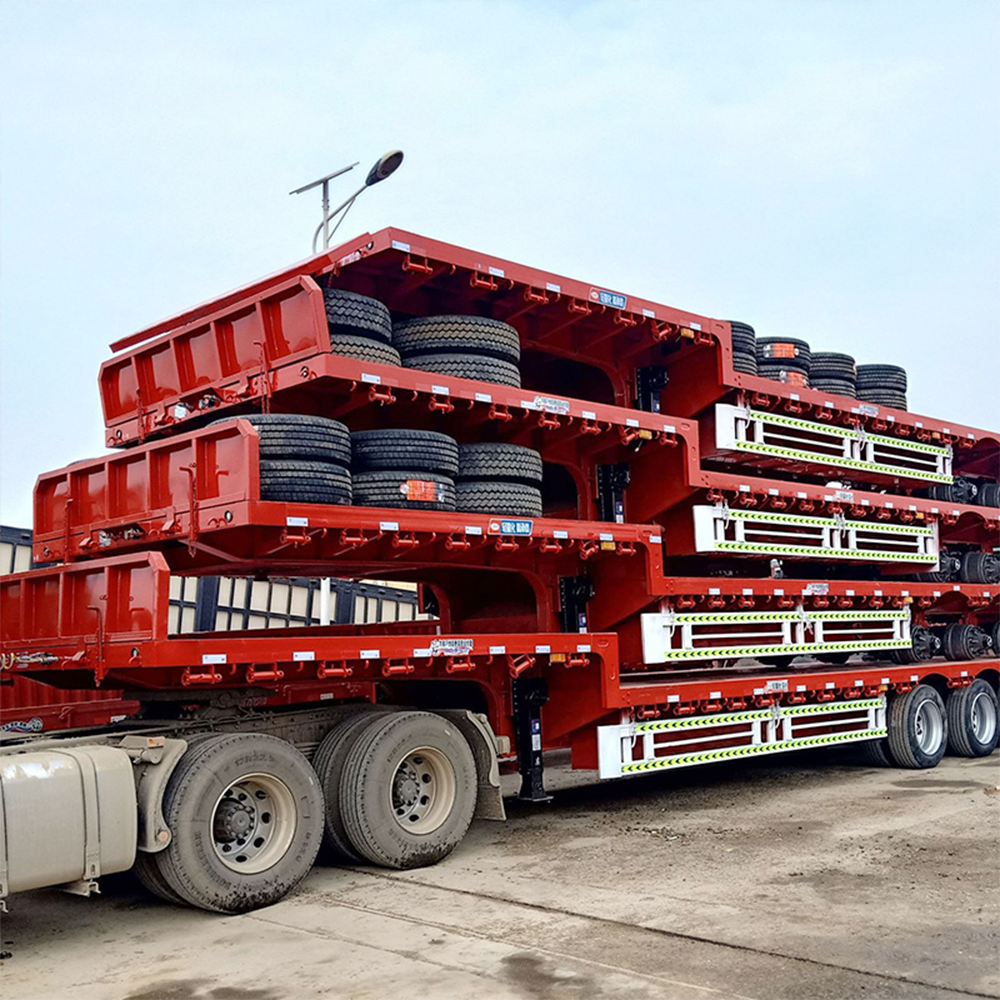

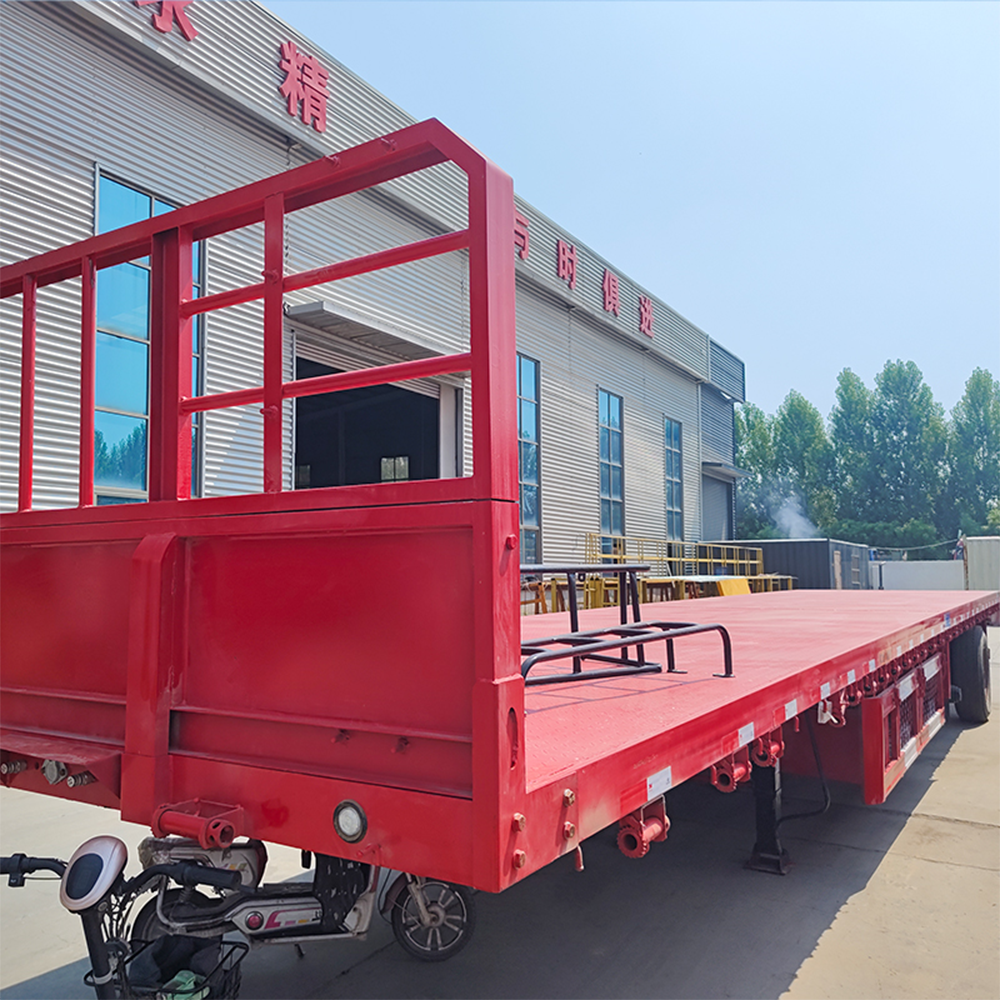

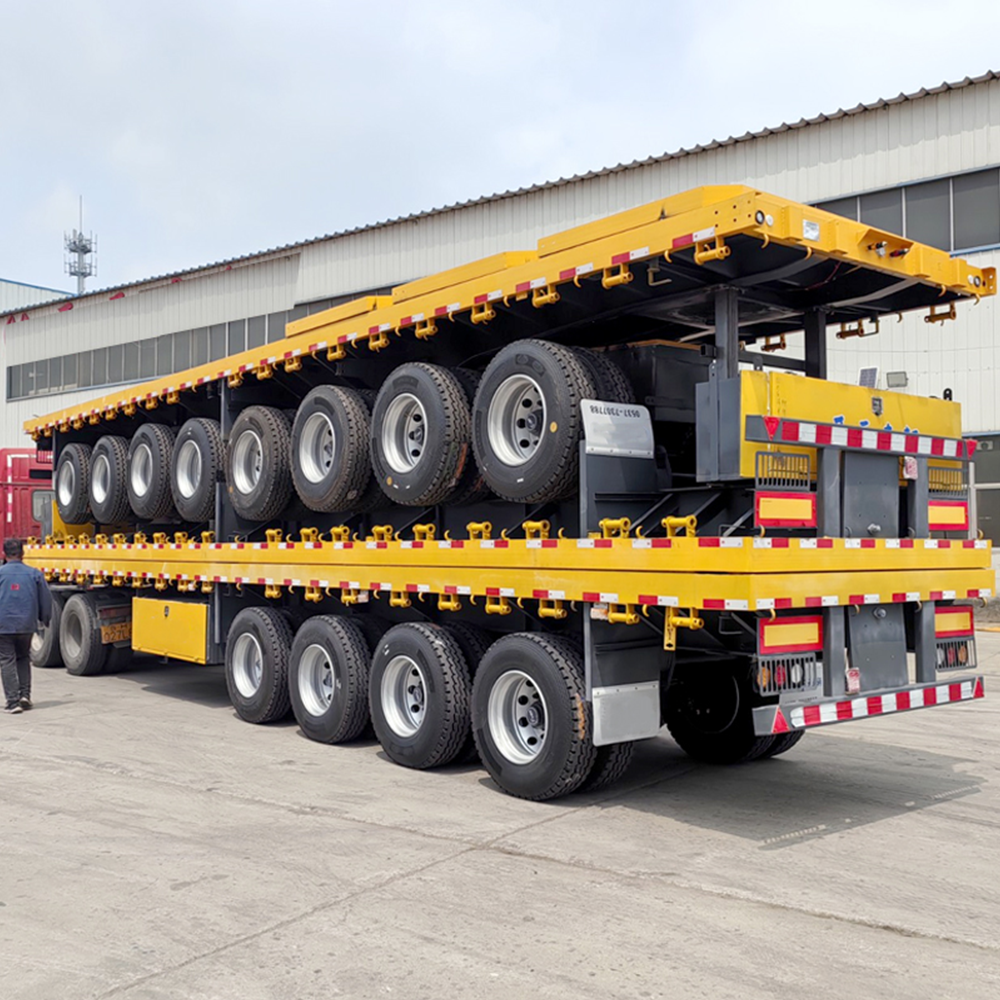

| Detail Specification for flatbed semi trailer | |
| Items | Flat bed semi tailer |
| Tare Weight | 7.0 Tons |
| Payload | 50Tons |
| Size | 12400x2610x1550mm |

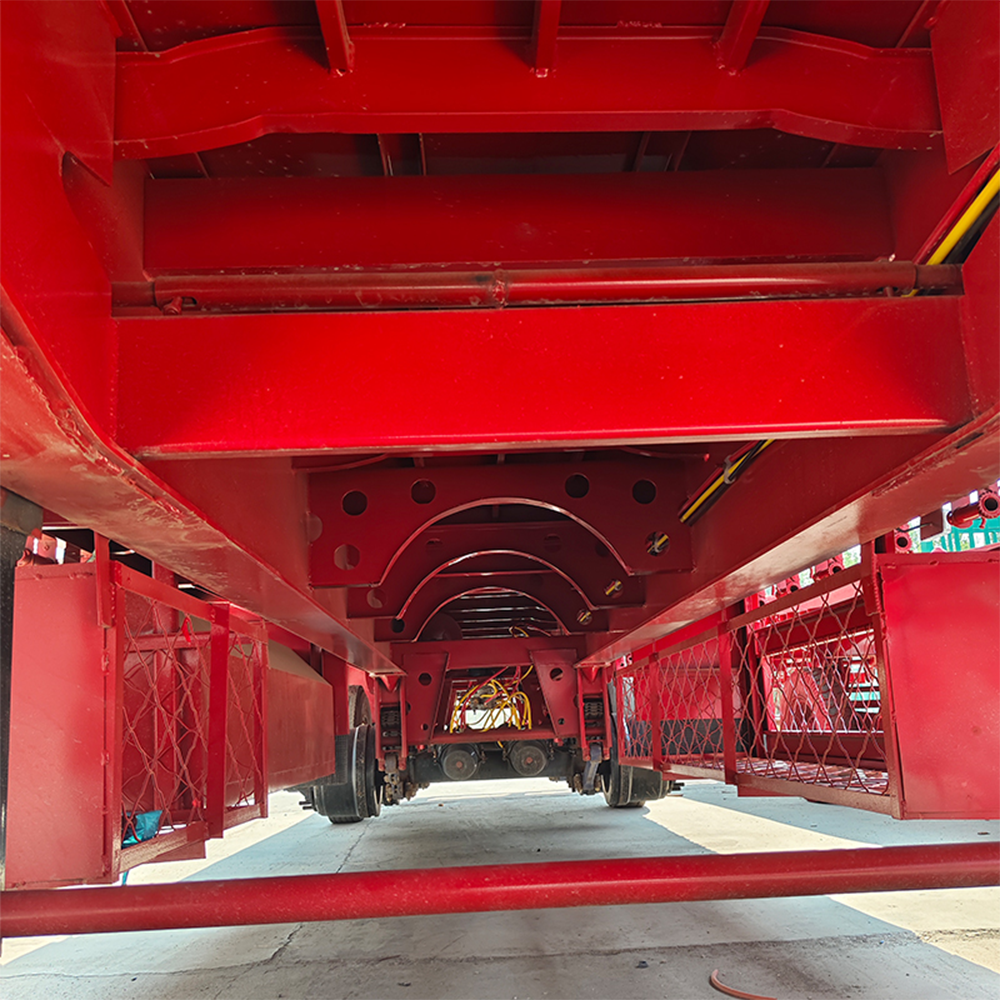

| Frame | Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm |
| Cross Beam: Heavy duty thickened 10# channel steel | |
| Side Beam: Heavy duty 18# channel steel | |
| Floor: 3mm thickness checkered plate | |
| Axles | 13/16/20 tons, axle amount optional like 2/3/4/5/6 axle … axle brand optional like SAF/FHWA/BPW etc |
| King pin | 2.00″(50#), bolting king pin, JOST brand |
| Suspension | Heavy duty type tri-axles suspension with equalizers. American design |
| Steel Spring | Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm |
| Landing gear | 28tons lifting capacity , two speed |
| Tire specs | 12R22.5 Triangle brand , or another brand according to customer |
| Rim | 9.00-22.5 brand according to customer |
| Paiting | Sanding , anti-corrosion , one primer paining add two layer top coat painting |
| Side Gurd | According to customer |
| Electrical system | One unit of 24v 7-pin ISO 1185 socket: LED light |
| spare tire | Two set of heavy duty spare wheel carriers, indluding a riser |
| Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar |
FAQs
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Our machinery adopt durable top brand engine, high configuration, with top quality, thus the cost will be a little higher.
What warranty do you provide for your Dongfeng truck?
We provide 12 months warranty calculating from the machinery equipment arrive at destination port. During the warranty time, we will provide free spare parts if you need to change the damaged parts at first time when you contact with us. And provide you the cost price of spare parts after the warranty time.
