PRODUCT PARAMETERS
Product Description

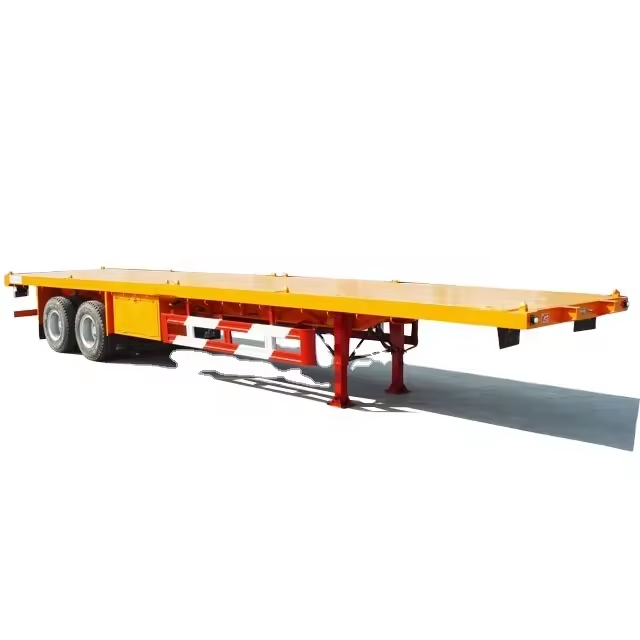

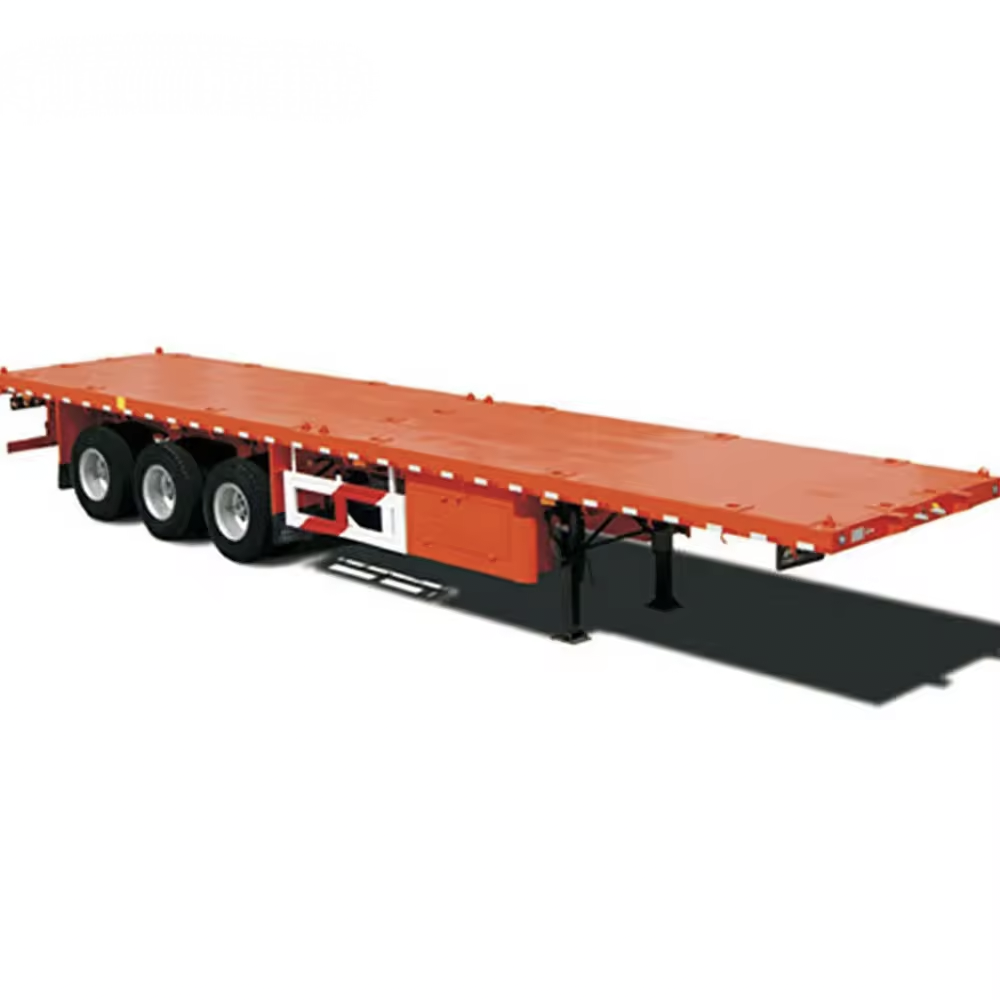

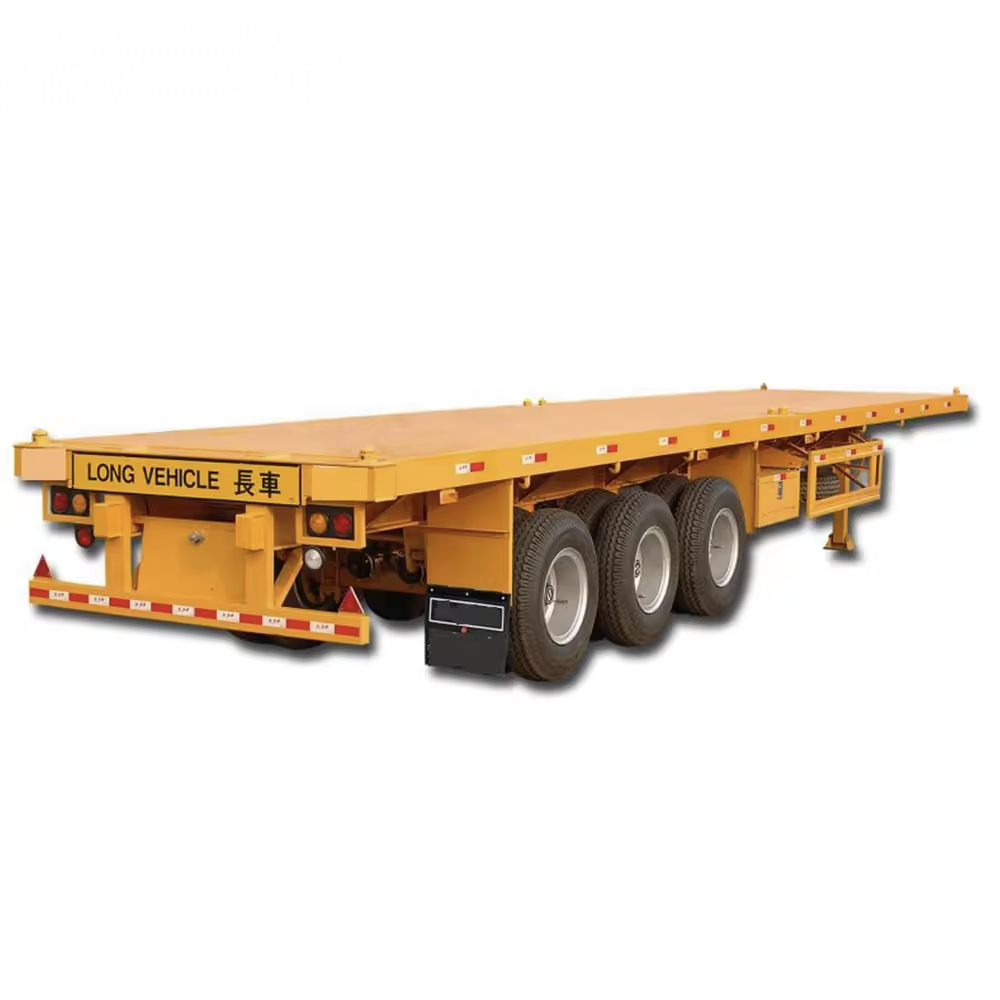

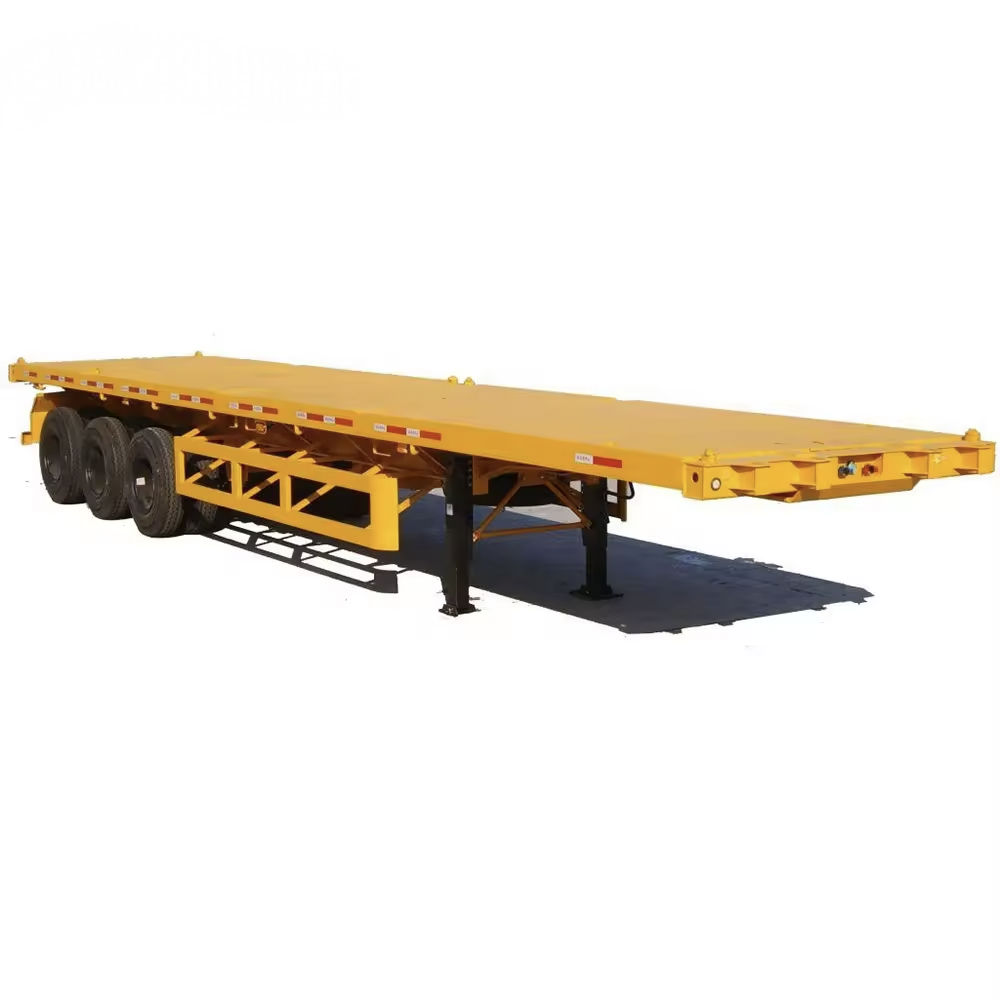

| Type | Container flatbed semi trailer |
| Loading capacity(ton) | 40ton 4 |
| Dimensions(L*W*H) | 12500mm*2500mm*1600mm |
| Main Beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
| Platform plate | 3mm |
| side beam | 16# |
| Axle | 3x13Ton FUWA brand |
| Container locker | 12 pieces 1 |
| King pin | 50mm or 90mm |
| Landing gear | 28Ton single action supporting legs |
| Suspension | leaf spring suspension |
| Steel Spring | -/90/13/10 |
| Tire type and quantity | 12R22.5 12 pieces |
| Wheel base | 6800+1310+1310 |
| Spare tire carriers | 2 pieces |
| Brake | Standard |
| Tools box | 1 piece |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Air chamber | Six double air chamber |
| Side marker lamp | LED type |
| Painting | According to the requirement of the buyer |
FAQs
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Our machinery adopt durable top brand engine, high configuration, with top quality, thus the cost will be a little higher.
What warranty do you provide for your Dongfeng truck?
We provide 12 months warranty calculating from the machinery equipment arrive at destination port. During the warranty time, we will provide free spare parts if you need to change the damaged parts at first time when you contact with us. And provide you the cost price of spare parts after the warranty time.
