PRODUCT PARAMETERS
Product Description

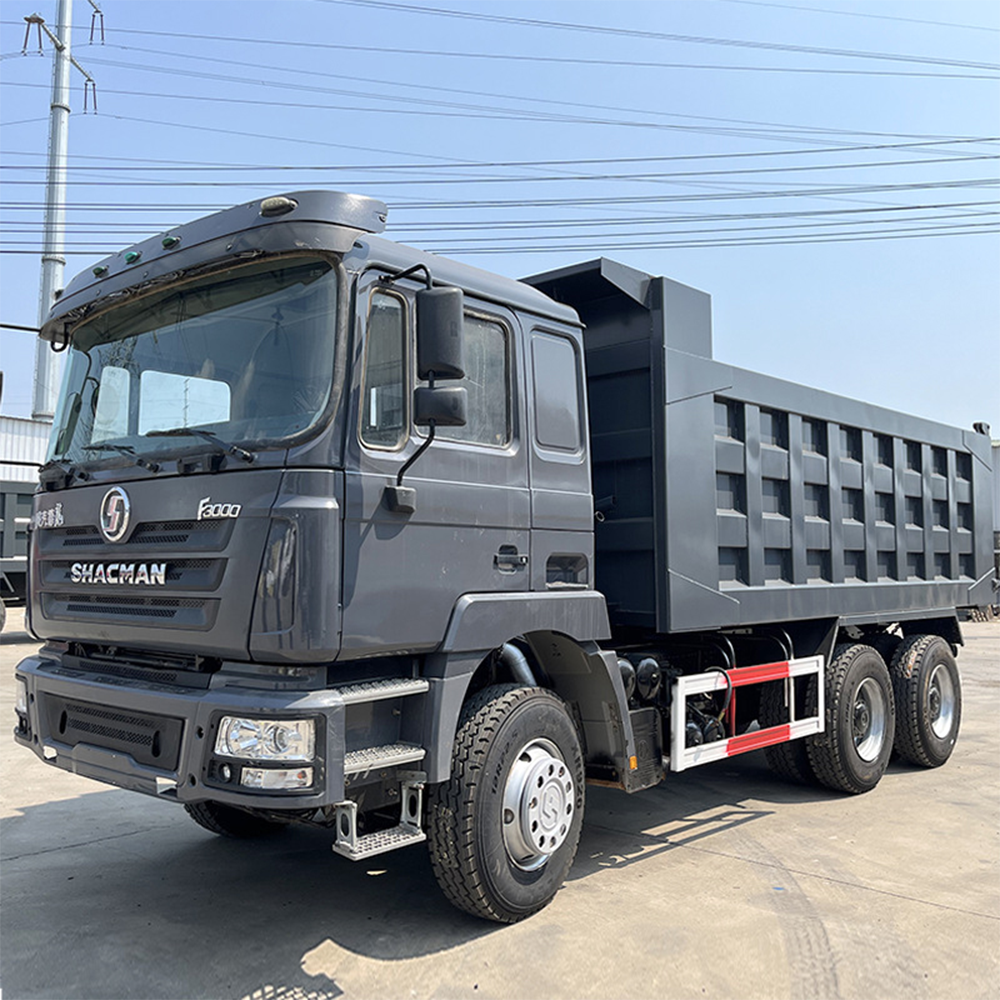

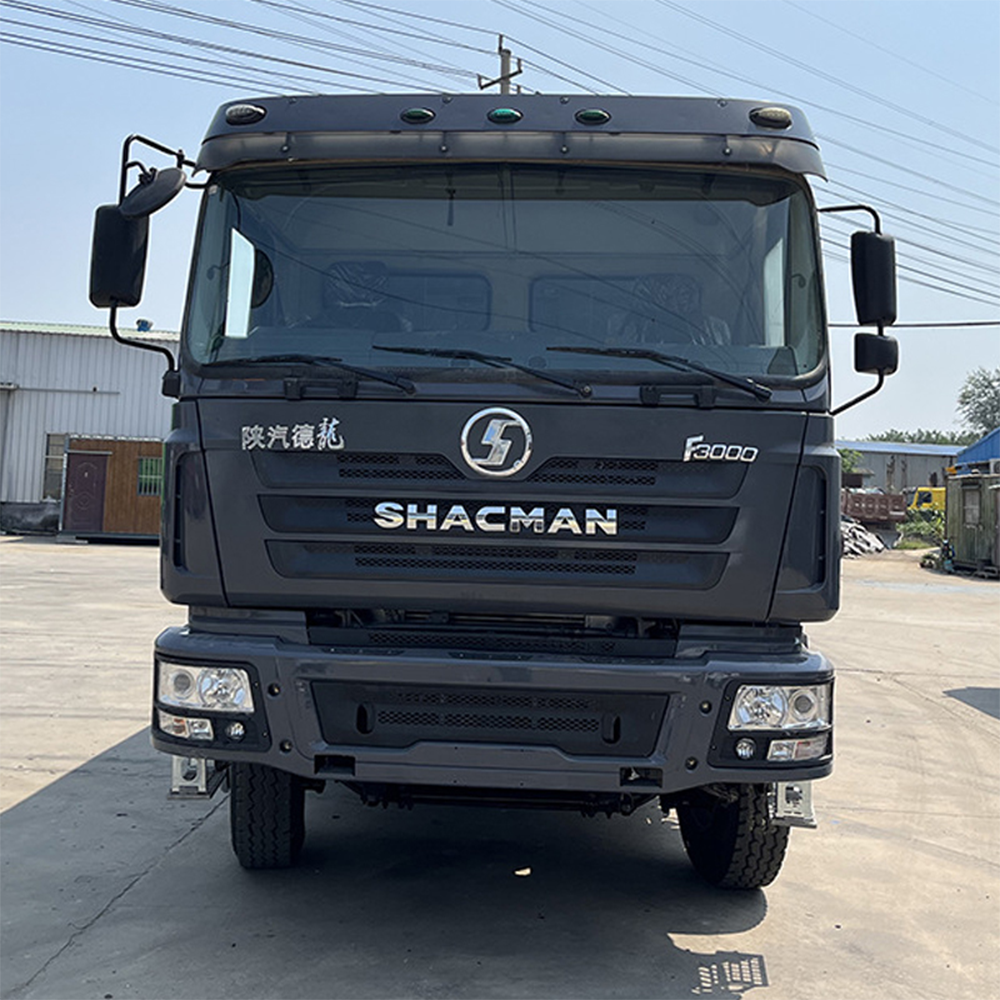

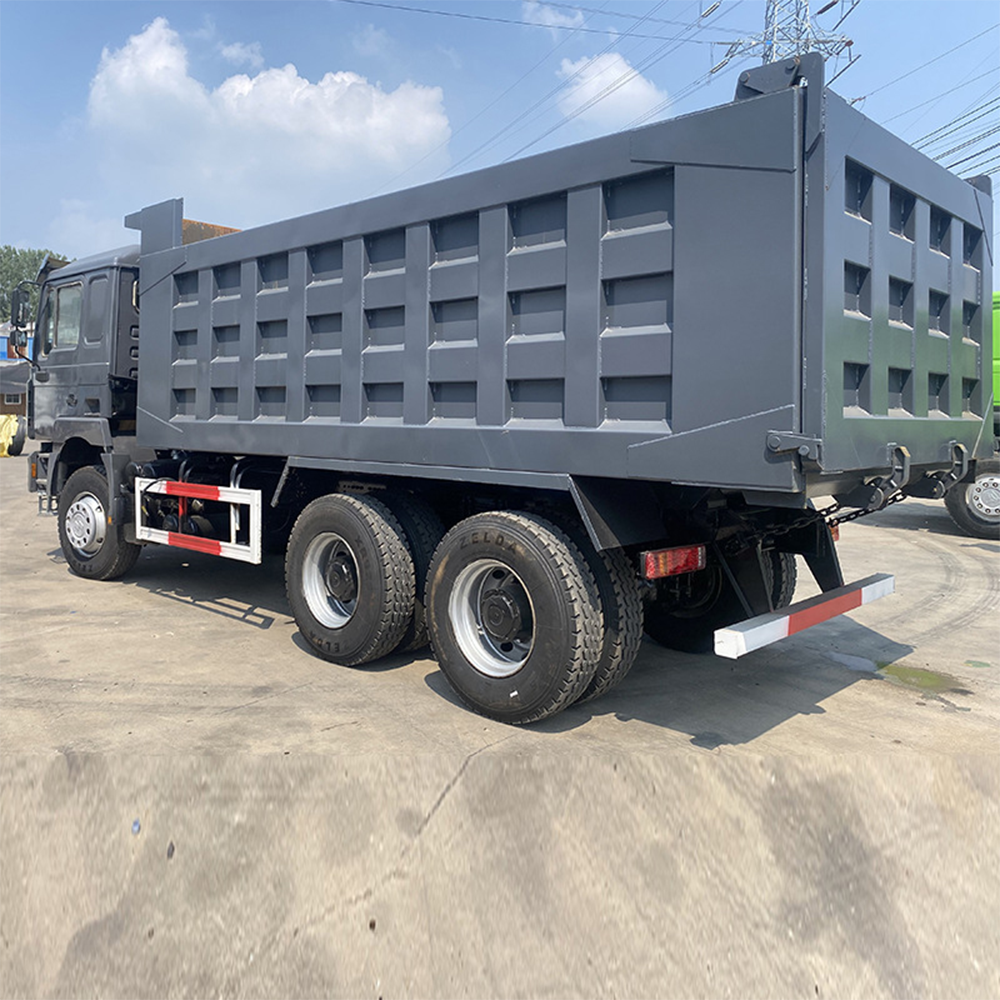

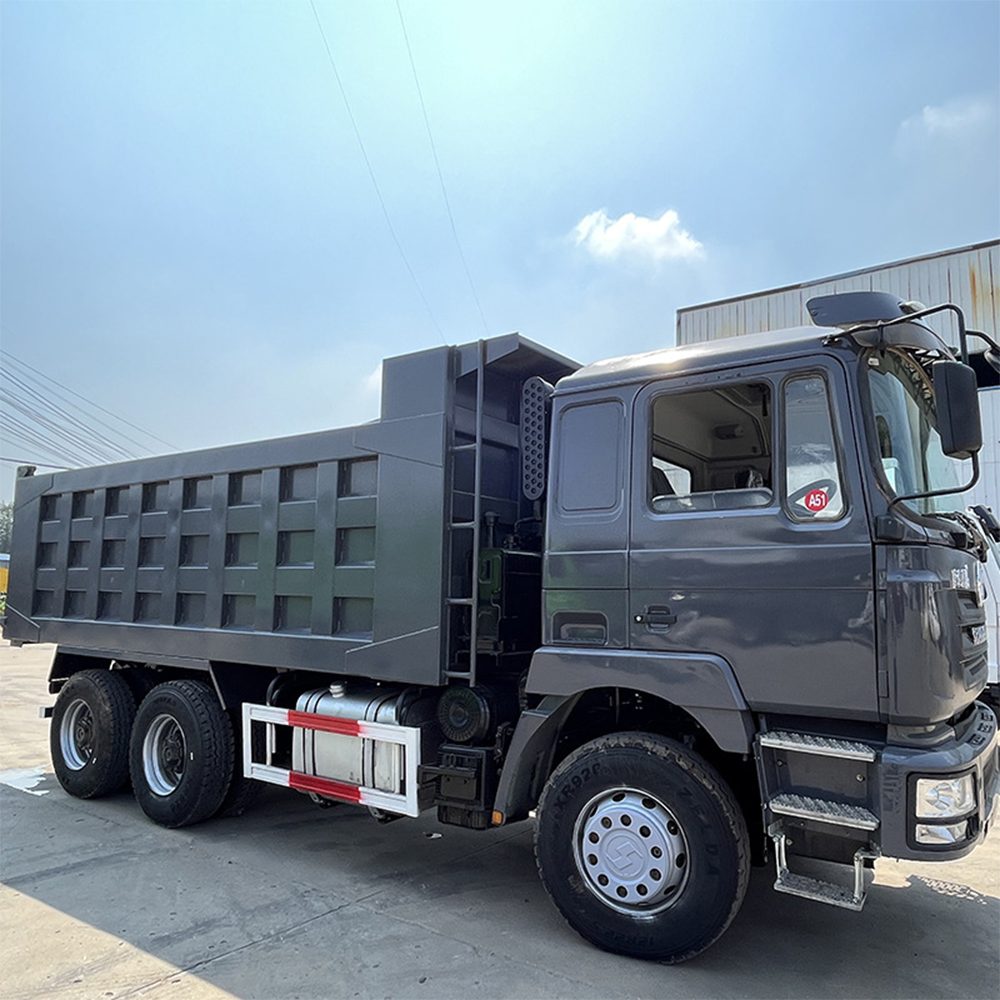

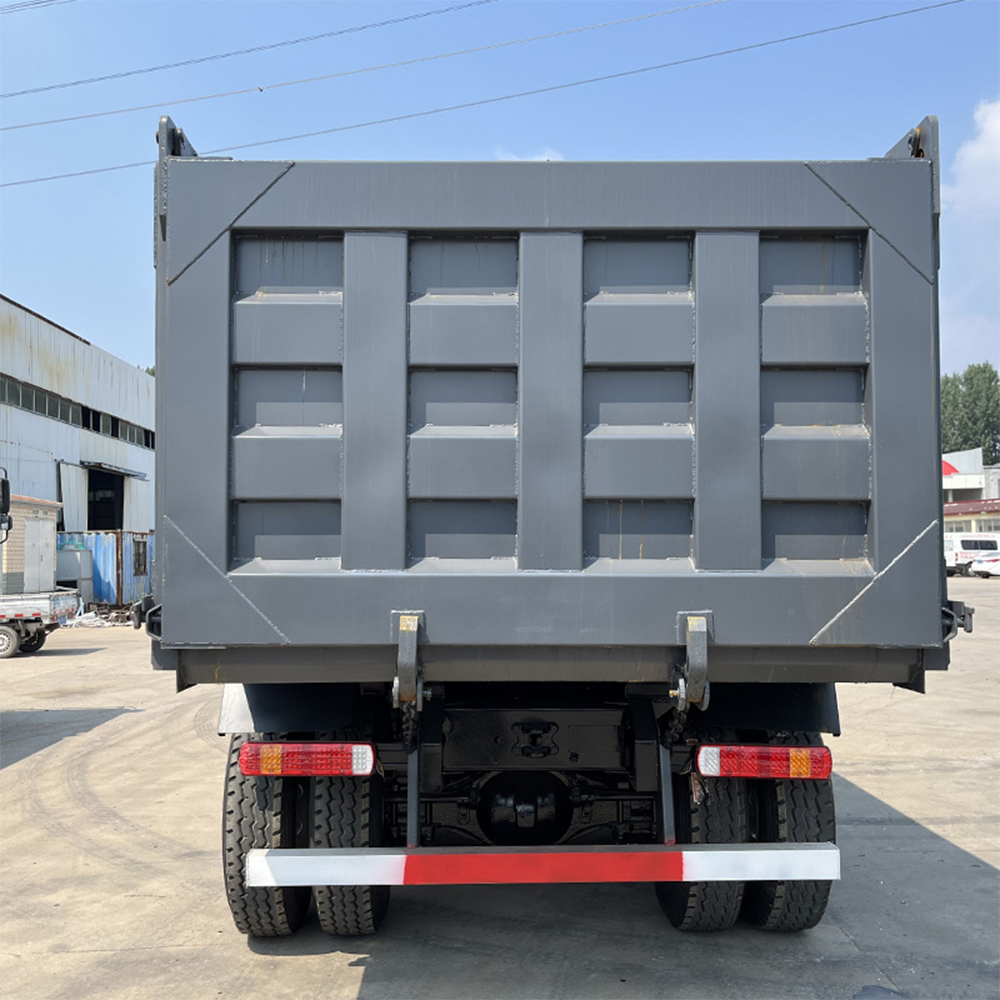

| Shacman F3000 6×4 Dump Truck | |
| Drive type | 6×4; left hand drive |
| Cabin | New F3000 cabin, with sleeper, with air conditioning |
| Engine | Weichai WP10.380E32 9.726L Euro III |
| Transmission | 12JSD160T, 12 forward gears, 2 reverse gears |
| Steering | ZF technology |
| Clutch | Φ430mm Diaphragm type |
| Dump box dimension (mm) | 5600×2300×1500mm |
| Dump box steel thickness | Bottom 8mm, side 6mm |
| Hydraulic lifting system | Middle Lifting T style |
| Loading capacity (kg) | 30 Ton |
| Wheel base (mm) | 3775mm+1400mm |
| Front axle | 7.5T MAN technology |
| Rear axle | 16 Ton MAN technology double reduction; speed ratio: 5.92 |
| Overhang (mm) (F/R) | 1525 / 1530 |
| Tire | Radial tire 12.00R20 |
| Frame (mm) | 850*300(8+7) |
| Fuel tanker capacity (L) | 400L |
| Overall Dimension (mm) | 8550×2490×3450mm |
FAQs
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Our machinery adopt durable top brand engine, high configuration, with top quality, thus the cost will be a little higher.
What warranty do you provide for your Dongfeng truck?
We provide 12 months warranty calculating from the machinery equipment arrive at destination port. During the warranty time, we will provide free spare parts if you need to change the damaged parts at first time when you contact with us. And provide you the cost price of spare parts after the warranty time.
